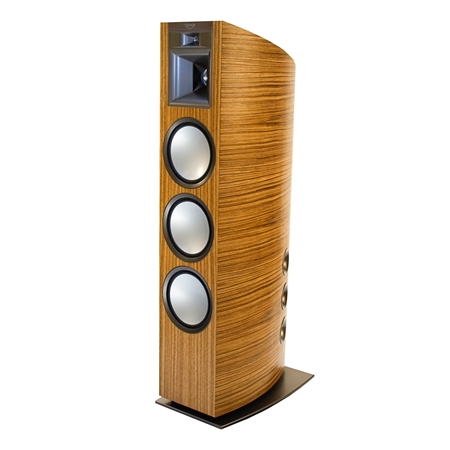

P-39F詳細描述

產品規格
頻率響應 39Hz-24kHz +/-3dB
low frequency extension 28Hz
high frequency extension 30kHz
承載功率 400W continuous / 1600W peak
recommended amplifier power 50 - 1000W
靈敏度 99dB @ 2.83V / 1m
標稱阻抗 4 ohms
mid-frequency crossover 500Hz
高頻分頻 3200Hz
最大聲音輸出 126dB (2 speakers in-room)
高頻驅動頭 0.75" (1.9cm) titanium diaphragm compression driver mated to 90° x 60° Tractrix® Horn
mid-frequency drivers 4.5" (11.4cm) aluminum diaphragm compression driver mated to 90° x 60° Tractrix® Horn
低頻驅動頭 Three 9" (22.9cm) high-output, aluminum / Rohacell® / Kevlar® hybrid cone woofers
機箱材料 Constrained layer MDF (medium density fiberboard)
機箱類型 Bass-reflex via triple side-firing ports
高度 56" (142.2cm)
寬度 12" (30.5cm) (14.5" / 36.8cm at the base)
深度 24.75" (62.9cm)
重量 165 lbs (74.9kg)
飾面 Zebra-grain Linia veneer in a natural, merlot or espresso stain

開始生產年份 2008

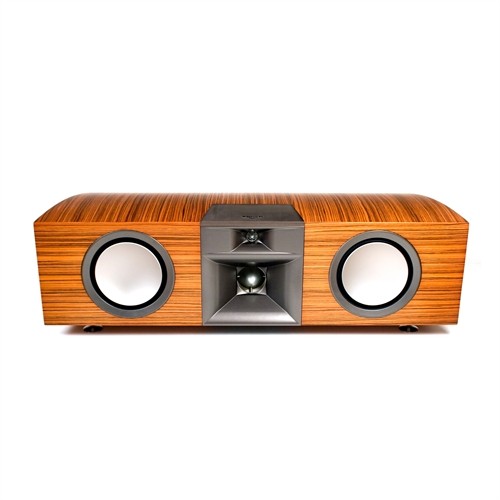

P-27C詳細描述

產品規格

頻率響應 56Hz-24kHz +/-3dB
low frequency extension 39Hz
high frequency extension 30kHz
承載功率 250W continuous / 1000W peak
recommended amplifier power 50 - 600W
靈敏度 96dB @ 2.83V / 1m
標稱阻抗 4 ohms
mid-frequency crossover 550Hz
高頻分頻 3400Hz
最大聲音輸出 115dB (in-room)
高頻驅動頭 0.75" (1.9cm) titanium diaphragm compression driver mated to 90° x 60° Tractrix® Horn
mid-frequency drivers 4.5" (11.4cm) aluminum diaphragm compression driver mated to 90° x 60° Tractrix® Horn
低頻驅動頭 Dual 7" (17.8cm) high-output, aluminum / Rohacell® / Kevlar® hybrid cone woofers
機箱材料 Constrained layer MDF (medium density fiberboard)
機箱類型 Bass-reflex via dual rear-firing ports
高度 9.4" (23.9cm)
寬度 32.9" (83.6cm)
深度 17.5" (44.5cm)
重量 52 lbs (23.6kg)
飾面 Zebra-grain Linia veneer in a natural, merlot or espresso stain
開始生產年份 2008

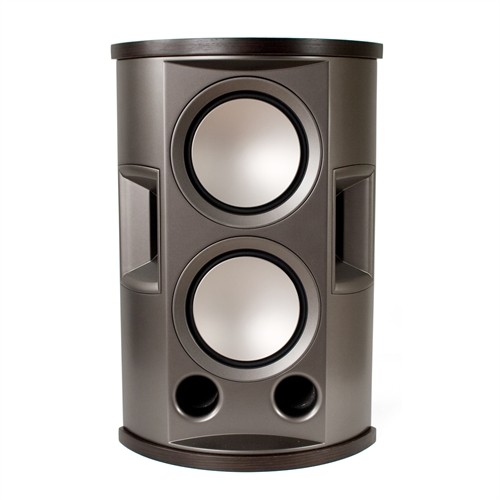

P-27S詳細描述

產品規格

頻率響應 72Hz-24kHz +/-3dB
low frequency extension 54Hz
high frequency extension 30kHz
承載功率 150W continuous / 600W peak
recommended amplifier power 50 - 350W
靈敏度 96dB @ 2.83V / 1m
標稱阻抗 4 ohms
高頻分頻 2000Hz
最大聲音輸出 117dB (2 speakers in-room)
高頻驅動頭 Dual 0.75" (1.9cm) titanium diaphragm compression drivers mated to 90° x 70° Tractrix® Horns in a WDST array
低頻驅動頭 Dual 7" (17.8cm) high-output, aluminum / Rohacell® / Kevlar® hybrid cone woofers
機箱材料 CTS composite
機箱類型 Bass-reflex via dual front-firing ports
高度 20.5" (52.1cm)
寬度 13.75" (34.9cm)
深度 7" (17.8cm)
重量 25 lbs (11.4kg)
飾面 Cabinet features a dark smoked nickel satin finish, end caps feature a zebra-grain Linia veneer available in a natural, merlot or espresso stain
開始生產年份 2008

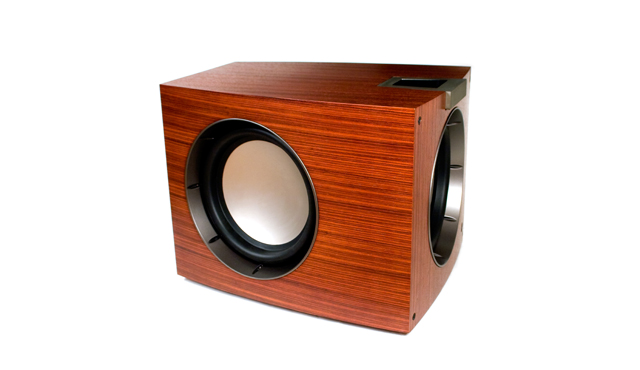

P-312W詳細描述

產品規格

頻率響應 18-120Hz +/-3dB
放大器功率 FTC rated power: 1000 watts continuous @ <2 thd="" dynamic="" power="" :="" 2500="" watts="" td="">
最大聲音輸出 123dB @ 30Hz 1/8 space, 1m
驅動組件 Ultra-high-excursion 12" (30.5cm) aluminum / fiber-composite hybrid cone, front-firing woofer and dual 12" (30.5cm) passive radiators
放大器 BASH® digital hybrid
機箱類型 Bass-reflex via dual side-firing passive radiators
輸入 L/R Line-level RCA and XLR jacks, USB 2.0
輸出 Mono RCA and XLR jacks
高度 17.75" (45.1cm)
寬度 20" (50.8cm)
深度 23.25" (59.1cm)
重量 95 lbs (43.1kg)
特點 Advanced DCS touch-panel control and feature set w/ 5 system presets and ARC Adaptive Room Correction
飾面 Zebra-grain Linia veneer in a natural, merlot or espresso stain
電壓 110/120 VAC 60Hz
出口電壓 220 VAC 50/60Hz
開始生產年份 2008
